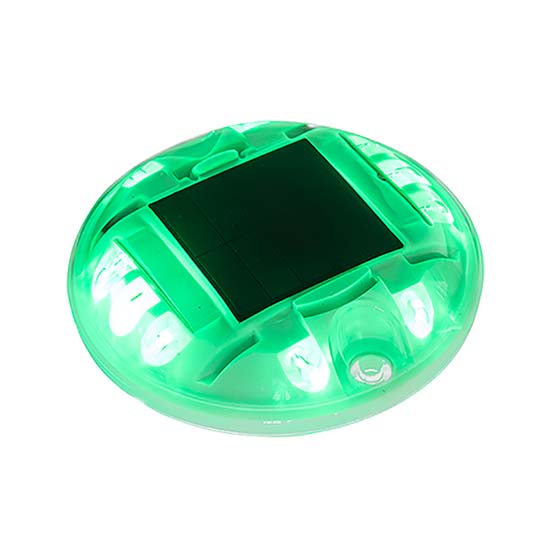

Solar Road Stud HA-RS-C1

360 degrees luminous, the product is transparent, with a jewel-like luster, suitable for setting in the column head, traffic circle and other areas. With high waterproof performance (IP68) and pressure resistance performance. More than ten years of experience in using on the road.
Protection class: IP68
Certificate: CE, ROHS, ISO9001
Warranty: 2 Years
Share With:
Product Introduction
Solar road studs, is a kind of road studs, set along the road surface, for night or rain and fog weather, indicating the direction of the road ahead, by retro-reflective materials, shell, solar panels, LED, control devices. With active light-emitting and passive reflective properties of visual induction, usually used in combination with the marker.
Solar road studs work: during the day, solar panels absorb sunlight, solar energy into electrical energy stored in energy storage devices (batteries or capacitors), at night, the electrical energy in the storage devices automatically converted into light energy (controlled by photoelectric switch), through the LED emits bright light to outline the road, to induce the driver's line of sight.

Product Advantages
01
360 degrees of light, streamlined design, beautiful and generous.
02
Shell once injection molding, material for Japan Teijin PC bulletproof material.
03
High temperature resistant power battery life of more than 5 years.
04
High-efficiency U.S. sun power battery cells, conversion rate of 23%.
05
Super bright LED, 100,000 hours brightness without light decay.
Product Parameters
Body material PC
Power supply Solar panel(Monocrystalline 2.5V /0.25W)
Battery NI-MH 1.2V/600mAh or Lithium battery
Led φ5 Ultra bright LED*10
Working period Full recharging for 8hours and working in 120hours constantly
Working model Constant or blinking(flashing frequency 2Hz,also can be made according to your requirements)
Color Red,Yellow,Green,Blue,White

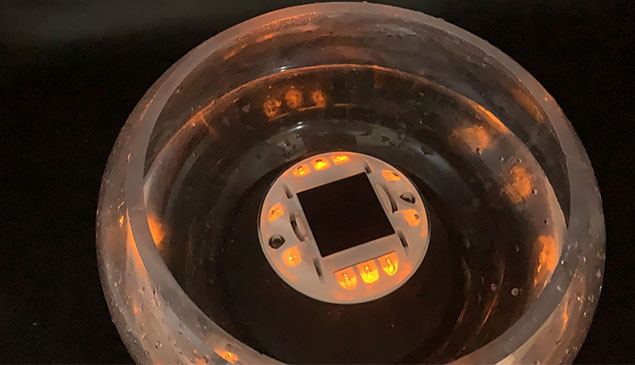

Water proof IP68
Resistance >20T
Size φ116*23mm   (φ4.61"*0.91")
Life time >3years;
Product Install
01
Mark the correct installation location and clean it up (generally 3m apart).
02
Pour the glue on the installation location.
03
Clean the bottom of the solar road stud and place it on top.
04
After installation, clean up the spilled glue and debris around, wait for 4-8 hours to activate.
