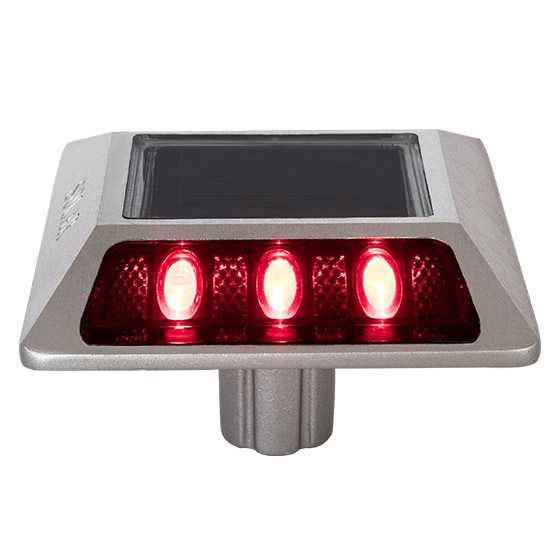

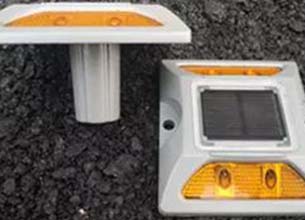

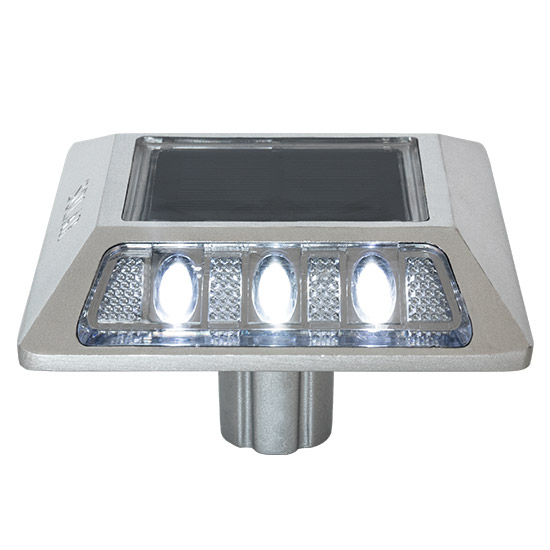

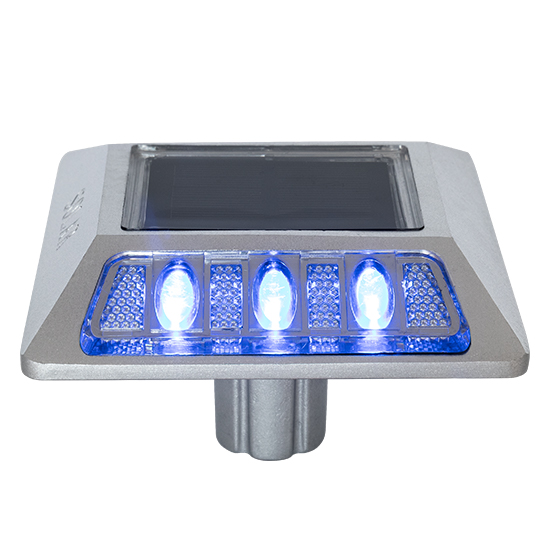

Aluminum Flashing LED Solar Road Stud

Product Introduction

Solar road studs, is a kind of road studs, set along the road surface, for night or rain and fog weather, indicating the direction of the road ahead, by retro-reflective materials, shell, solar panels, LED, control devices. With active light-emitting and passive reflective properties of visual induction, usually used in combination with the marker.

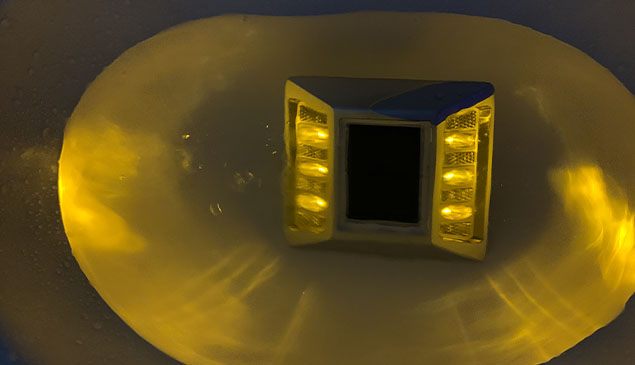

Solar road studs work: during the day, solar panels absorb sunlight, solar energy into electrical energy stored in energy storage devices (batteries or capacitors), at night, the electrical energy in the storage devices automatically converted into light energy (controlled by photoelectric switch), through the LED emits bright light to outline the road, to induce the driver's line of sight.

Product Advantages

Aluminum alloy shell once die-casting molding, nail surface integration design.

Increase the led luminous area, improve the visual recognition.

High impact resistance, load-resistant structure design.

large-capacity power battery, 2000 cycles of life.

High efficiency solar panel charging efficiency 23%.

Product Parameters

Body material	Hi-pressure Casting Aluminium alloy
Power supply	Solar panel(Monocrystalline 2.5V /0.2W)
Battery	NI-MH1.2V/800MAH or Super capacitor(120F)

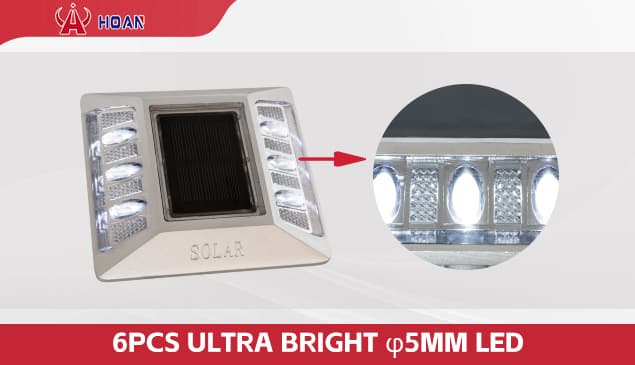

LED	Ultra bright diameter 5mm; 6pcs(double side)

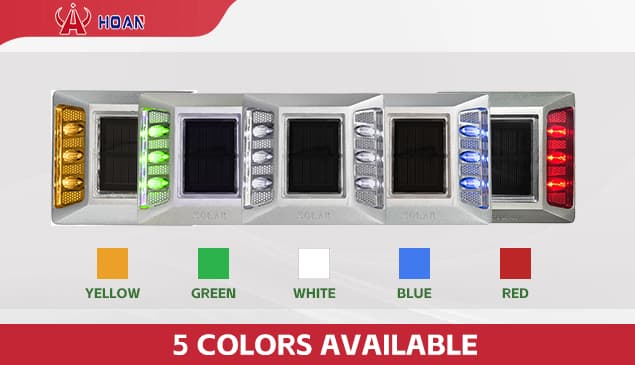

LED color	Red,Yellow,Green,Blue,White
working mode	Recharging at day and working automatically at night

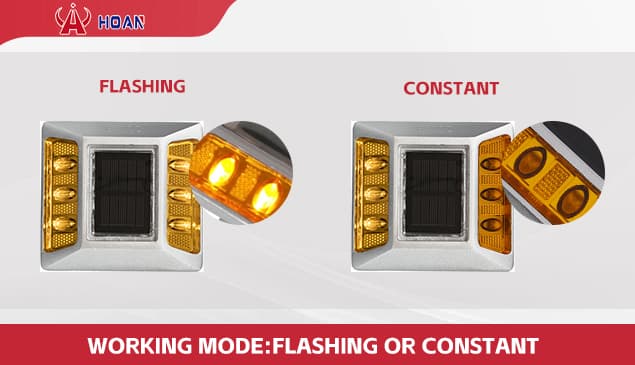

Flashing mode	Blinking or constant(flashing frequency 2Hz, also can be made according to your requirements)
Working hours	Fully charge at 8hours and can working 120hours continuously

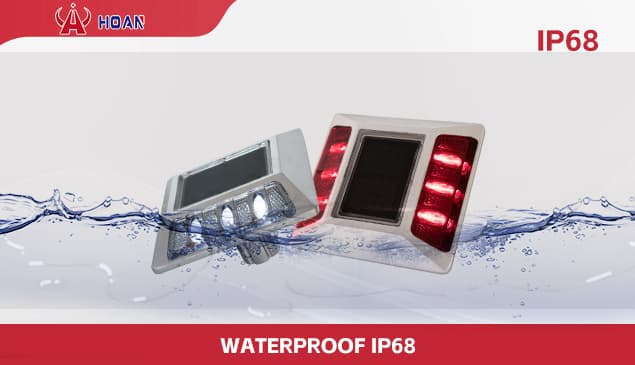

Water proof	IP68
Visual distance	>800m
Life span	>3years
Load capacity	>20T
Size	L123W133H22mm+55mm (L4.84"W5.24"H0.87"+2.17")
Working temperature	-40~85 °C
Package:	1pcs/box; 45pcs/ctn; weight: 31kgs; Carton size: 66.54428cm (1pcs/box; 45pcs/ctn; weight: 68.34bs; Carton size: 26.18"17.32"11.02")

Product Install

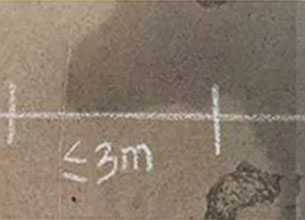

Mark the correct installation location (generally 3m apart).

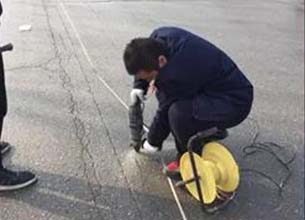

Use the coring machine to take the hole, the depth of the hole is 1cm greater than the depth of the nail foot, and the diameter of the hole position is 2mm greater than the diameter of the nail foot.
