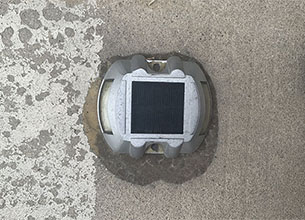

Solar Road Stud HA-RS-A1

Cast aluminum solar reflective road studs have a pressure resistance value of 25 tons, and the solar cell housing is designed with a descending surface, thus reducing vehicle friction. The area of solar panel is larger than that of general products, and the charging efficiency is 30% higher. Waterproof performance is better, suitable for rainy zone areas. Reflectors are set in from the inside of the shell, so they are not easily damaged and perform well on highways with heavy traffic flow.

Protection class: IP68

Certificate: CE, ROHS, ISO9001

Warranty: 2 Years

Chat Online

Send Email

Share With:

Product Introduction

Solar road studs, is a kind of road studs, set along the road surface, for night or rain and fog weather, indicating the direction of the road ahead, by retro-reflective materials, shell, solar panels, LED, control devices. With active light-emitting and passive reflective properties of visual induction, usually used in combination with the marker.

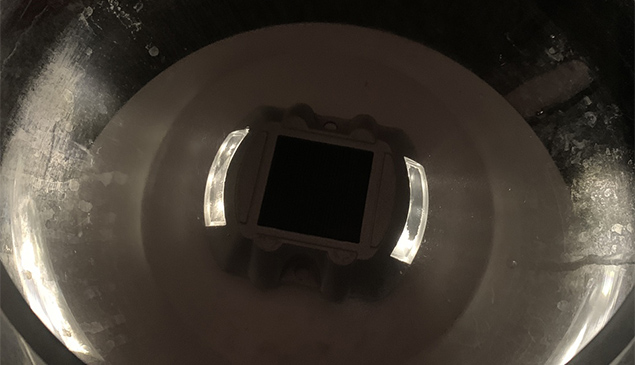

Solar road studs work: during the day, solar panels absorb sunlight, solar energy into electrical energy stored in energy storage devices (batteries or capacitors), at night, the electrical energy in the storage devices automatically converted into light energy (controlled by photoelectric switch), through the LED emits bright light to outline the road, to induce the driver's line of sigh.

Product Advantages

The solar cell shell is made of Japanese PC bulletproof material, with high impact resistance.

Reflective sheet embedded installation design, never fall off.

Reflective plate U.S. electro-casting mold core, reflective brightness in line with ASTM4280.

The United States sun power flexible high-efficiency cell, photoelectric conversion rate of 23%.

High temperature lithium iron phosphate power battery, more than 5 years of ultra-long life.

Product Parameters

Body material	Hi-pressure Casting Aluminium alloy
Power supply	Solar panel(mono crystalline 2.5V/0.25W)
Battery	NI-MH 1.2V/600mAh ot Lithium battery
LED	Ultra bright diameter 5mm;6pcs double side
LED color	Red, Yellow, Green, Blue, White
Working mode	Blinking or constant(flashing frequency 2Hz,also can be made according to your requirements)
Visual distance	>800m
Working hours	Fully charge at 8hours and can working 120hours continuously
Water proof	IP68
Life span	>3years
Load capacity	>20T
Size	L108mmW97mmH25mm (L4.25"W3.82"H0.98")
Packing	2pcs/box; 60pcs/ctn
Carton size	58.524.518.5cm (23.03"9.657.28")
Carton weight	21kgs (46.30bs)
