Solar Road Stud HA-RS-150(IL300)

IL300 SOLAR ROAD STUD WITH 6SCREWS (150MM*50MM)
Protection class: IP68
Certificate: CE, ROHS, ISO9001
Warranty: 2 Years
Share With:
Product Introduction
IL-300 Solar road studs are a type of road stud that is placed along the surface of the road during inclement weather or nighttime to show the direction of the road ahead using shells, solar panels, LEDs, and control systems. often employed in conjunction with the marker, possessing both passively reflecting and actively light-emitting qualities of visual induction.
The way the IL300 Solar Road Stumps operate is that during the day, solar panels absorb sunlight and convert it into electrical energy that is stored in energy storage devices (batteries or capacitors). At night, the electrical energy in the energy storage devices is automatically converted into light energy (managed by a photoelectric switch), and bright light is emitted by the LED to outline the road and draw the driver's attention.
Product Advantages
01
Up to 1000 meters of visibility.
02
Solar led road markers totally sustainable harnessing free solar energy.
03
Used where street lighting is either unavailable, not cost effective or environmentally impossible.
04
Cost effective, solar road studs easy to install and require absolutely no wires or maintenance.
05
Solar raised pavement markers accept OEM/ODM.
Product Parameters
Body material :                                     Aluminum Alloy+PC cover
Power supply:                                             Solar panel(Monocrystalline 5V /80MA)
Battery:                                                   Lithium battery 1000MAH*3.2V
LED:                                   Ultra bright diameter 8mm*6PCS

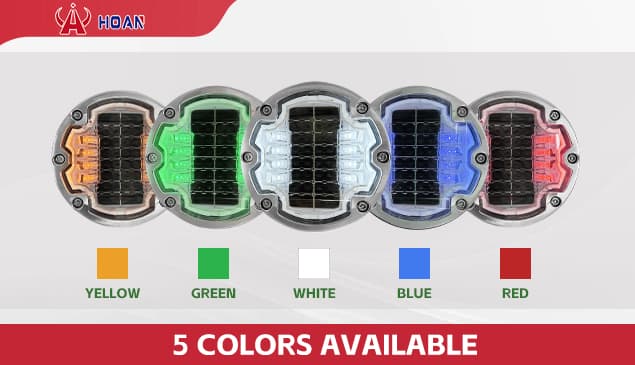

LED Color:                                                     White Green Red Yellow Blue
Flashing model:                                      flashing  or constant
Working hours:                                     140 hrs for flashing modes,40hrs for constant modes
Visual distance:                                   1000m(approx)

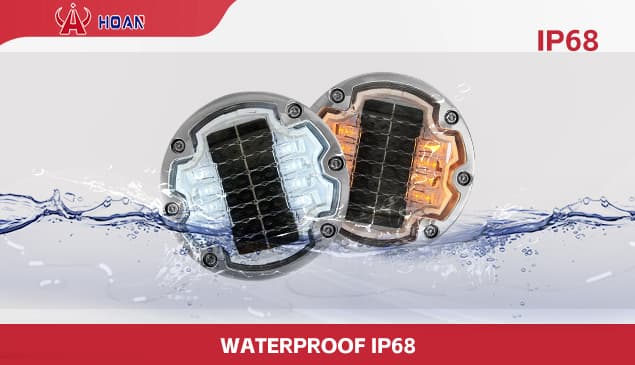

Waterproof:                                   IP68
Load capacity                                 >40T(can be installed in the middle of road)
Size:                                                φ150*50mm
Life span:                                           more than 5 years
Working Temperature -20 °C~ + 70°C
waterproof IP68
描述:
Product Install
01
Mark the correct installation position (generally 3m apart), use a coring machine to drill holes of suitable size, and then blow dry for cleaning.
02
Prepare the glue in proportion (40-50g/pcs), and pour the glue into three-quarters of the hole.
03
Clean the bottom of the solar road stud and place it in the hole.
04
After installation, clean up the spilled glue and debris around, wait for 4-8 hours to activate.
