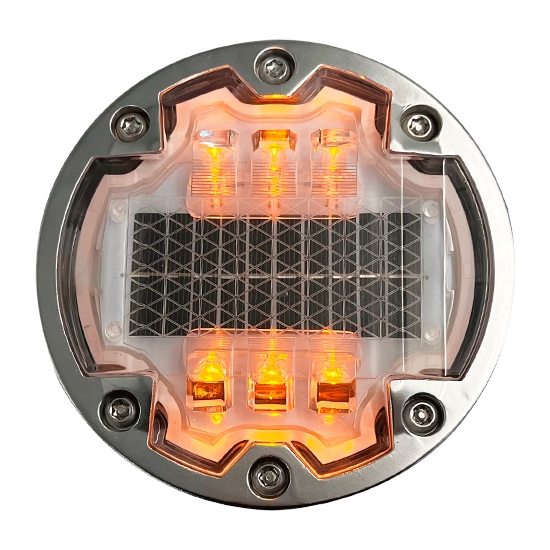

Solar Road Stud HA-RS-143N(IL300)

HEAVY SOLAR ROAD STUD WITH 6 SCREWS (143MM*47MM)
Loading Capacity: 40+ Tons
Certificate: CE, ROHS, ISO9001
Warranty: 2 Years
Share With:
Product Introduction
The Il300 Solar road studs are a type of studs that are placed along a road's surface to indicate the direction of the road ahead in the event of rain, fog, or darkness. They are made of retro-reflective materials, shells, solar panels, LEDs, and control electronics. often employed in conjunction with the marker, possessing both passively reflecting and actively light-emitting qualities of visual induction.
Il300 Solar Road Stud Function: During the day, solar panels collect and process solar energy, which is then converted into electrical energy and stored in energy storage devices (batteries or capacitors). At night, the electrical energy in the storage devices is automatically converted into light energy (managed by a photoelectric switch), and bright light is emitted by the LED to outline the road and draw the driver's attention.
Product Advantages
01
High brightness America brand led with 100000 hours of working time.
02
USA brand solar panel. 22% high conversion rate. Fast charge rate.
03
Most quality Epoxy resin glue to fix the solar led road markers, making sure of solar power charge.
04
The leader of solar road stud. Load capacity:>49T(can be installed in the middle of road).
05
Accept OEM/ODM.
Parameters
Body material :                                     Aluminum Alloy+PC cover
Power supply:                                             Solar panel(Monocrystalline 5V /80MA)
Battery:                                                   Lithium battery 1000MAH*3.2V
LED:                                   Ultra bright diameter 8mm*6PCS
LED Color:                                                     White Green Red Yellow Blue
Flashing model:                                      flashing  or constant
Working hours:                                     140 hrs for flashing modes,40hrs for constant modes
Visual distance:                                   1000m(approx)
Waterproof:                                   IP68
Load capacity                                 >40T(can be installed in the middle of road)
Size:                                                 φ143*47mm
Package:                                       1pcs/box; 30pcs/ctn; Weight: 38.5kgs; Carton size: 80*33*19cm
  (1pcs/box; 30pcs/ctn; Weight: 84.88bs; Carton size: 31.50"*12.99"*7.48")
Life span:                                           more than 5 years
Working Temperature -20 °C~ + 70°C
waterproof IP68
Product Install
01
Mark the correct installation position (generally 3m apart), use a coring machine to drill holes of suitable size, and then blow dry for cleaning.
02
Prepare the glue in proportion (40-50g/pcs), and pour the glue into three-quarters of the hole.
03
Clean the bottom of the solar road stud and place it in the hole.
04
After installation, clean up the spilled glue and debris around, wait for 4-8 hours to activate.
