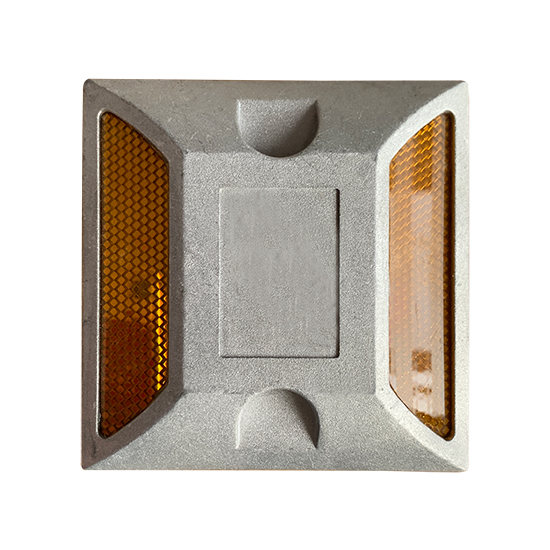

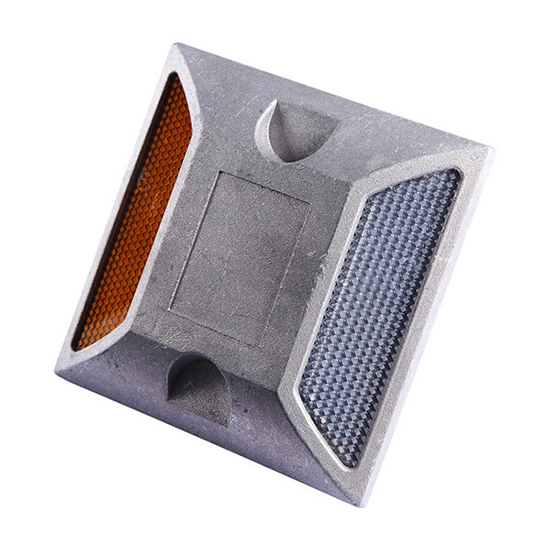

Reflective Road Stud HA-104

Reflective Road Studs, also called raised road signs. Is a kind of traffic safety facilities. Mainly installed in the middle of the road marking or double yellow line in the middle, through its retro-reflective properties to remind drivers to drive according to the lane.
Protection class: IP68
Certificate: CE, ROHS, ISO9001
Warranty: 2 Years
Share With:
Product Introduction

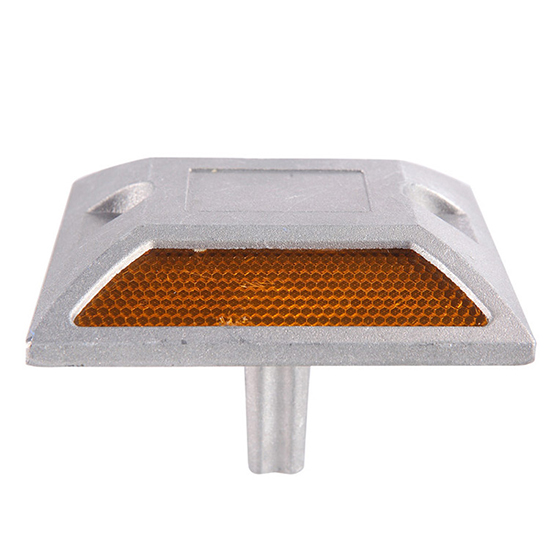

Cast aluminum filled road studs have more than fifteen years of application experience, can be widely used in the middle of the road and other traffic flow of the zone, the pressure resistance in more than 20 tons. Product surface can be added wear-resistant protective layer, reflective sheet into the shell to reduce the case of being damaged, the bottom of the road nail with nail feet, more stable when installed, not easy to fall off, in line with EN1463-1 standard.
Product Advantages
01
Reflector embedded design, reduce vehicle friction.
02
Epoxy resin solid seal, anti-pressure 20T.
03
One-piece die-casting nail surface, more solid installation.
04
Reflector adopts Japanese high-precision reflective mold core in accordance with ASTM-4280 standard.
05
Housing material GB-ADC-12 aluminum ingot, strong corrosion resistance.
Product Parameters
Size : 102*100*22 +50mm
Material : Aluminum alloy + PMMA reflector
Color: White Yellow Red Blue Green
Working temperature: -20℃~+70℃
Product Install
01
Mark the correct installation location and clean it up (generally 3m apart).
02

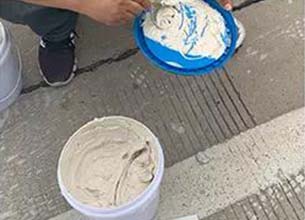

Pour the glue on the installation location.
03
Clean the bottom of the solar road stud and place it on top.
04
After installation, clean up the spilled glue and debris around, wait for 4-8 hours to activate.
