How to Install Cat Eye Road Stud Reflectors

Preparation for installing cat eye road studs.

To ensure that reflective cat eye road studs play the best role, the preparation work before installation is crucial.

1.Choose the right product: Choose the right cat eye road stud reflective according to different road types and traffic flows. There are cat-eye road studs of various specifications and materials on the market, such as cast iron, plastic, aluminum alloy, etc. The product with the best durability and reflective performance should be selected according to actual needs.

2.Tool and material preparation: Before the formal installation, relevant tools and materials need to be prepared, including high-strength glue or epoxy resin, electric drill, marking tools, brooms, etc. Reasonable preparation can improve construction efficiency and ensure installation quality.

3.Site survey: Conduct a detailed survey of the installation section to determine the installation location and number of reflective cat eye road studs. Especially in key sections such as bends and ramps, the spacing and arrangement of road studs should be adjusted according to actual conditions.

Detailed steps for installing cat eye road studs

1.Clean the road surface

The first step in installing cat eye road studs is to clean the road surface. Use a broom or air gun to remove dust, sand and other debris near the installation location, and ensure that the road surface is dry and clean. Good road conditions are the basis for ensuring that the reflective cat eye road studs are firmly installed.

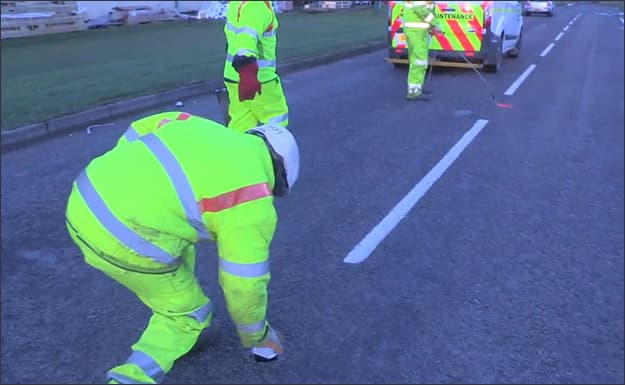

2.Marking location

Use a tape measure and a marking tool to mark the installation location of each cat's eye road stud on the road surface. Make sure the markings are accurate and the spacing is uniform so that the reflective cat eye road studs can form a continuous and clear guide line on the road. For straight sections, the spacing of the road studs is usually 10-15 meters; while on curves or ramps, the spacing should be appropriately reduced to improve the warning effect.

3.Drilling operation

For embedded cat eye road studs, drilling operations are required at the marked locations. Use an electric drill and select a suitable drill bit according to the size of the road stud to ensure that the drilling depth and diameter match the specifications of the road stud. During the drilling process, pay attention to keeping the drill hole vertical to ensure the stability of the road stud reflectors after installation.

4.Apply glue

Apply high-strength glue or epoxy resin evenly in the drilled hole or at the bottom of the road stud reflectors. The choice of glue is crucial. Use special glue that is weather-resistant and pressure-resistant to ensure that the reflective cat eye road studs can be firmly attached in all weather conditions.

5.Installation of cat eye road studs

Press the reflective cat eye road stud gently onto the marked position, or insert the embedded road stud into the drilled hole. During installation, make sure that the road stud is in close contact with the road surface and remains horizontal. You can use a hammer to gently tap the road stud reflectors to ensure that it is firmly embedded. Adjust the direction of the road stud so that its reflective surface faces the direction of the oncoming vehicle to achieve the best warning effect.

6.Waiting for curing

After installation, wait for the glue or epoxy resin to completely cure. This process usually takes several hours, and vehicles should be avoided from running over the reflective cat eye road stud during this period to avoid affecting the bonding effect. Construction workers can set up temporary fences or warning signs around the road stud reflectors to prevent accidents during construction.

7.Inspection and adjustment

After the glue cures, check each reflective cat eye road stud to ensure that it is firmly installed and accurately positioned. If looseness or position deviation is found, it needs to be corrected in time. At this time, appropriate fine-tuning can also be made according to the actual effect to ensure that all road studs play the best role at night or in bad weather conditions.

Maintenance and care after installation

Installing reflective cat eye road studs is not just a one-time process, but also requires subsequent maintenance and care. Regularly check the firmness and reflective effect of the road stud reflectors and clean the surface dirt to maintain their long-term performance. In addition, for sections of road that are often crushed by vehicles, road stud reflectors may be worn or damaged and should be replaced in time to ensure road safety.

Corporate marketing opportunities

As the market demand for cat's eye road studs increases, traffic facility companies should seize this opportunity to occupy the market with high-quality products and services. Here are some marketing strategy suggestions:

1.Product diversification: According to different market needs, develop reflective cat eye road stud of various specifications and materials to meet the requirements of different road conditions.

2.Technological innovation: Combine new technologies such as solar energy and LED to launch intelligent cat eye road stud products to enhance their competitiveness in the market.

3.Brand promotion: Actively promote corporate brands through online and offline channels, establish a professional and efficient brand image, and attract more customers to choose your products.

4.After-sales service: Provide comprehensive after-sales service, including product maintenance, technical support, etc., to improve customer satisfaction and establish long-term cooperative relationships.

Correct installation of reflective cat eye road studs can not only effectively improve road safety, but also extend their service life and reduce road maintenance costs. While promoting their products, traffic facility companies should actively convey the correct installation and maintenance methods to customers to ensure the maximum effectiveness of cat's eye road studs. In the future, with the continuous development of traffic facilities and the advancement of technology, road stud reflectors will continue to play an important role in road safety, and companies will also usher in more market opportunities in this process.
